Processing and Scaling#

This is a rendered copy of processing.ipynb. You can optionally run it interactively on binder at this link

Coffea relies mainly on uproot to provide access to ROOT files for analysis. As a usual analysis will involve processing tens to thousands of files, totalling gigabytes to terabytes of data, there is a certain amount of work to be done to build a parallelized framework to process the data in a reasonable amount of time.

Since the beginning a coffea.processor module was provided to encapsulate the core functionality of the analysis, which could be run locally or distributed via a number of Executors. This allowed users to worry just about the actual analysis code and not about how to implement efficient parallelization, assuming that the parallization is a trivial map-reduce operation (e.g. filling histograms and adding them together). This API ceased to exist for some time but we brought it back.

In coffa 202x (CalVer), you also have the option of deeper integration with dask (via dask_awkward and uproot.dask), and whether an analysis is to be executed on local or distributed resources, a TaskGraph encapsulating the analysis is created in this case. We will demonstrate how to use callable code to build these TGs.

We’ll always be showcasing both ways of using coffea to write and execute your analyis

Let’s start by writing a simple processor class that reads some CMS open data and plots a dimuon mass spectrum. We’ll start by copying the ProcessorABC skeleton and filling in some details:

  • Remove flag, as we won’t use it

  • Adding a new histogram for $m_{\mu \mu}$

  • Building a Candidate record for muons, since we will read it with BaseSchema interpretation (the files used here could be read with NanoAODSchema but we want to show how to build vector objects from other TTree formats)

  • Calculating the dimuon invariant mass

File access#

In the examples below, we will be using local copies of the files for speed but I have also left the eospublic xrtood urls for them in comments

Coffea Processors#

import awkward as ak
import dask_awkward as dak
from coffea import processor
from coffea.nanoevents.methods import candidate
import hist
import hist.dask
import dask


class MyProcessor(processor.ProcessorABC):
    def __init__(self, mode="virtual"):
        assert mode in ["eager", "virtual", "dask"]
        self._mode = mode

    def process(self, events):
        dataset = events.metadata["dataset"]
        muons = ak.zip(
            {
                "pt": events.Muon_pt,
                "eta": events.Muon_eta,
                "phi": events.Muon_phi,
                "mass": events.Muon_mass,
                "charge": events.Muon_charge,
            },
            with_name="PtEtaPhiMCandidate",
            behavior=candidate.behavior,
        )

        if self._mode == "dask":
            hist_class = hist.dask.Hist
        else:
            hist_class = hist.Hist
        h_mass = hist_class.new.StrCat(["opposite", "same"], name="sign").Log(1000, 0.2, 200.0, name="mass", label=r"$m_{\mu\mu}$ [GeV]").Int64()

        cut = (ak.num(muons) == 2) & (ak.sum(muons.charge, axis=1) == 0)
        # add first and second muon in every event together
        dimuon = muons[cut][:, 0] + muons[cut][:, 1]
        h_mass.fill(sign="opposite", mass=dimuon.mass)

        cut = (ak.num(muons) == 2) & (ak.sum(muons.charge, axis=1) != 0)
        dimuon = muons[cut][:, 0] + muons[cut][:, 1]
        h_mass.fill(sign="same", mass=dimuon.mass)

        if self._mode == "dask":
            return {
                "entries": ak.num(events, axis=0),
                "mass": h_mass,
            }
        else:
            return {
                dataset: {
                    "entries": len(events),
                    "mass": h_mass,
                }
            }

    def postprocess(self, accumulator):
        pass

If we were to just use bare uproot to execute this processor, we could do that with the following example, which:

  • Opens a CMS open data file

  • Creates a NanoEvents object using BaseSchema (roughly equivalent to the output of reading with plain uproot)

  • Creates a MyProcessor instance

  • Runs the process() function, which returns our accumulators

from coffea.nanoevents import NanoEventsFactory, BaseSchema
import matplotlib.pyplot as plt

# filename = "root://eospublic.cern.ch//eos/root-eos/cms_opendata_2012_nanoaod/Run2012B_DoubleMuParked.root"
filename = "/Users/iason/work/pyhep_dev/uscms-idap-training/coffea/Run2012B_DoubleMuParked.root"
access_log = []
events = NanoEventsFactory.from_root(
    {filename: "Events"},
    entry_stop=500_000,
    metadata={"dataset": "DoubleMuon"},
    schemaclass=BaseSchema,
    mode="virtual",
    access_log=access_log,
).events()
p = MyProcessor("virtual")

%%time
out = p.process(events)
out

CPU times: user 178 ms, sys: 31.6 ms, total: 210 ms
Wall time: 280 ms

{'DoubleMuon': {'entries': 500000,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 245435.0 (245753.0 with flow)}}

set(access_log)

{'Muon_charge', 'Muon_eta', 'Muon_mass', 'Muon_phi', 'Muon_pt'}

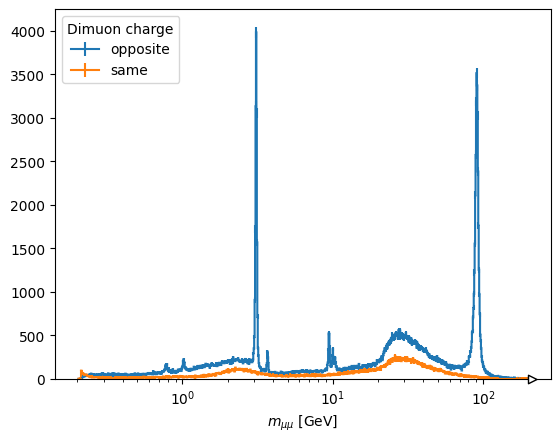

fig, ax = plt.subplots()
out["DoubleMuon"]["mass"].plot1d(ax=ax)
ax.set_xscale("log")
ax.legend(title="Dimuon charge")
plt.show()
../_images/b4560dd2a79652bd2a396de575251e81d612124d1af66d8aafb2a36a9d1df1f2.png
# filename = "root://eospublic.cern.ch//eos/root-eos/cms_opendata_2012_nanoaod/Run2012B_DoubleMuParked.root"
filename = "/Users/iason/work/pyhep_dev/uscms-idap-training/coffea/Run2012B_DoubleMuParked.root"
events = NanoEventsFactory.from_root(
    {filename: {"object_path": "Events", "steps": [[0, 500_000]]}},
    metadata={"dataset": "DoubleMuon"},
    schemaclass=BaseSchema,
    mode="dask",
).events()
p = MyProcessor("dask")
taskgraph = p.process(events)
taskgraph

{'entries': dask.awkward<num, type=Scalar, dtype=int64, known_value=500000>,
 'mass': Hist(
   StrCategory(['opposite', 'same'], name='sign'),
   Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
   storage=Int64()) # (has staged fills)}

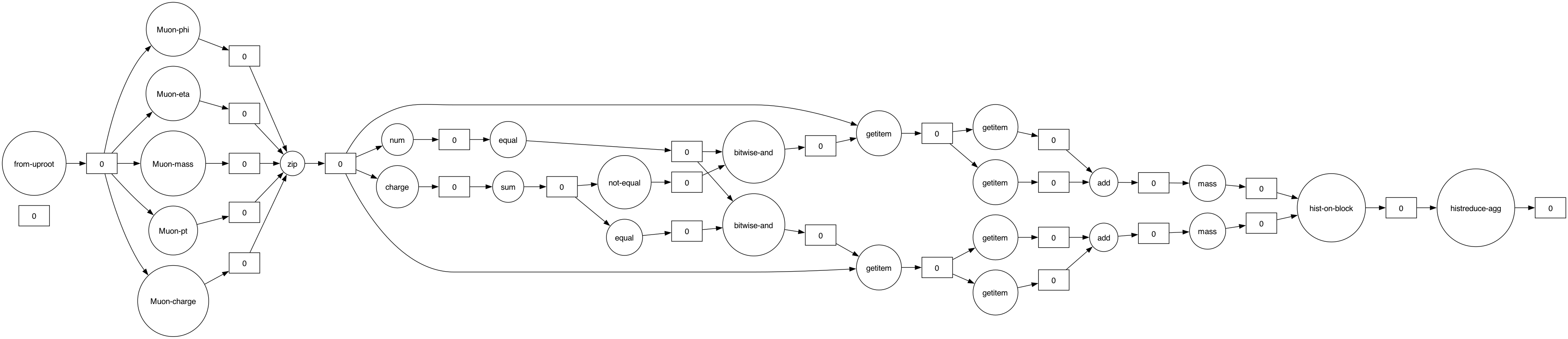

dask.visualize(taskgraph, rankdir="LR", optimize_graph=False)
../_images/61c561c8b3463f3ae33636db968e044e0566dd1367471454fda167409b9a5711.png
dask.visualize(taskgraph, rankdir="LR", optimize_graph=True)
../_images/64c06e127f17c43eec5fdd75e6b0e684bb16481338c2751adf5ea388bbe45590.png
%%time
(out,) = dask.compute(taskgraph)
out

CPU times: user 263 ms, sys: 38.9 ms, total: 302 ms
Wall time: 321 ms

{'entries': 500000,
 'mass': Hist(
   StrCategory(['opposite', 'same'], name='sign'),
   Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
   storage=Int64()) # Sum: 245435.0 (245753.0 with flow)}

dak.necessary_columns(taskgraph)

{'from-uproot-ece94f13a30832ab46c00668ff6af4a8': frozenset({'Muon_charge',
            'Muon_eta',
            'Muon_mass',
            'Muon_phi',
            'Muon_pt'})}

fig, ax = plt.subplots()
out["mass"].plot1d(ax=ax)
ax.set_xscale("log")
ax.legend(title="Dimuon charge")
plt.show()
../_images/b4560dd2a79652bd2a396de575251e81d612124d1af66d8aafb2a36a9d1df1f2.png

Filesets#

We’ll need to construct a fileset to run over

initial_fileset = {
    "DoubleMuon": {
        "files": {
            "/Users/iason/work/pyhep_dev/uscms-idap-training/coffea/Run2012B_DoubleMuParked.root": "Events",
            # "root://eospublic.cern.ch//eos/root-eos/cms_opendata_2012_nanoaod/Run2012B_DoubleMuParked.root": "Events",
        },
        "metadata": {
            "is_mc": False,
        },
    },
    "ZZ to 4mu": {
        "files": {
            "/Users/iason/work/pyhep_dev/uscms-idap-training/coffea/ZZTo4mu.root": "Events",
            # "root://eospublic.cern.ch//eos/root-eos/cms_opendata_2012_nanoaod/ZZTo4mu.root": "Events",
        },
        "metadata": {
            "is_mc": True,
        },
    },
}

Processing with Virtual mode#

Preprocessing is hidden inside this interface

%%time
iterative_run = processor.Runner(
    executor=processor.IterativeExecutor(compression=None),
    schema=BaseSchema,
    maxchunks=3,
    savemetrics=True,
)

out, metrics = iterative_run(
    initial_fileset,
    processor_instance=MyProcessor("virtual"),
)

Processing 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 6/6 [ 0:00:00 < 0:00:00 | 11.6 chunk/s ]



CPU times: user 439 ms, sys: 78.1 ms, total: 517 ms
Wall time: 569 ms













out









{'DoubleMuon': {'entries': 300090,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 146806.0 (147001.0 with flow)},
 'ZZ to 4mu': {'entries': 299814,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 57211.0 (57331.0 with flow)}}

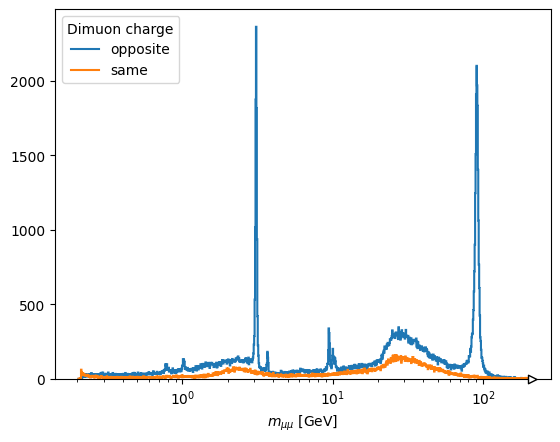

fig, ax = plt.subplots()
out["DoubleMuon"]["mass"].plot1d(ax=ax)
ax.set_xscale("log")
ax.legend(title="Dimuon charge")
plt.show()








../_images/a72ca24c6a15c2eda5805897e050fa428d37772e563add904fc8f3446a7a7f46.png





Now, if we want to use more than a single core on our machine, we simply change IterativeExecutor for FuturesExecutor, which uses the python concurrent.futures standard library. We can then set the most interesting argument to the FuturesExecutor: the number of cores to use.






%%time
futures_run = processor.Runner(
    executor=processor.FuturesExecutor(workers=4, compression=None),
    schema=BaseSchema,
    savemetrics=True,
)

out, metrics = futures_run(initial_fileset, processor_instance=MyProcessor("virtual"))









     Processing 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 308/308 [ 0:00:07 < 0:00:00 | 48.6  chunk/s ]
Merging (local)   0% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━   1/308 [ 0:00:07 < -:--:-- | ?    merges/s ]





CPU times: user 1.38 s, sys: 159 ms, total: 1.54 s
Wall time: 7.54 s













out









{'DoubleMuon': {'entries': 29308627,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 14378856.0 (14397111.0 with flow)},
 'ZZ to 4mu': {'entries': 1499064,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 288707.0 (289326.0 with flow)}}

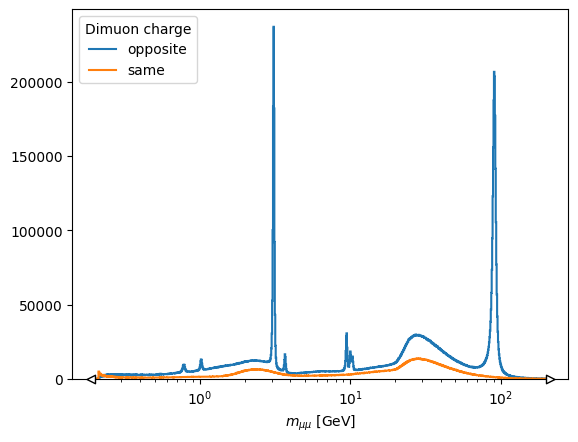

fig, ax = plt.subplots()
out["DoubleMuon"]["mass"].plot1d(ax=ax)
ax.set_xscale("log")
ax.legend(title="Dimuon charge")
plt.show()








../_images/9ff5adf1ccb1064a69dfcf69f5984c4c60de27f339d35aaed0e5df6c206335b1.png





In an analysis facility, all you need to do do scale your analysis, is connect to the facility’s dask cluster






from dask.distributed import Client

# here we connect to the cluster of our analysis facility.
# if you are on coffea-casa for example, that should be something like
# client = Client("tls://localhost:8786")
# locally we can make our own cluster though
from dask.distributed import LocalCluster

cluster = LocalCluster(threads_per_worker=1)
client = Client(cluster)

client
















Client


Client-40302046-b51d-11f0-82f3-aae91076e0c2







            Connection method: Cluster object
            Cluster type: distributed.LocalCluster








                    Dashboard:  http://127.0.0.1:8787/status















Cluster Info

















%%time
dask_run = processor.Runner(
    executor=processor.DaskExecutor(client=client, compression=None),
    schema=BaseSchema,
    chunksize=100_000,
    skipbadfiles=True,
    savemetrics=True,
)

out, metrics = dask_run(initial_fileset, processor_instance=MyProcessor("virtual"))









Processing 100% ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 326/326 [ 0:00:03 < 0:00:00 | 89.5 chunk/s ]





CPU times: user 740 ms, sys: 166 ms, total: 905 ms
Wall time: 3.84 s













out









{'DoubleMuon': {'entries': 29308627,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 14378856.0 (14397111.0 with flow)},
 'ZZ to 4mu': {'entries': 1499064,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 288707.0 (289326.0 with flow)}}













fig, ax = plt.subplots()
out["DoubleMuon"]["mass"].plot1d(ax=ax)
ax.set_xscale("log")
ax.legend(title="Dimuon charge")
plt.show()








../_images/9ff5adf1ccb1064a69dfcf69f5984c4c60de27f339d35aaed0e5df6c206335b1.png









Processing with Dask mode#




Preprocessing#


There are dataset discovery tools inside of coffea to help construct such datasets. Those will not be demonstrated here. For now, we’ll take the above initial_fileset and preprocess it.






from coffea.dataset_tools import apply_to_fileset, max_chunks, max_files, preprocess













preprocessed_available, preprocessed_total = preprocess(
    initial_fileset,
    step_size=100_000,
    align_clusters=False,
    skip_bad_files=True,
    recalculate_steps=False,
    files_per_batch=1,
    file_exceptions=(OSError,),
    save_form=False,
    uproot_options={},
    step_size_safety_factor=0.5,
)













Preprocessed fileset#


Lets have a look at the contents of the preprocessed_available part of the fileset






preprocessed_available









{'DoubleMuon': {'files': {'/Users/iason/work/pyhep_dev/uscms-idap-training/coffea/Run2012B_DoubleMuParked.root': {'object_path': 'Events',
    'steps': [[0, 100030],
     [100030, 200060],
     [200060, 300090],
     [300090, 400120],
     [400120, 500150],
     [500150, 600180],
     [600180, 700210],
     [700210, 800240],
     [800240, 900270],
     [900270, 1000300],
     [1000300, 1100330],
     [1100330, 1200360],
     [1200360, 1300390],
     [1300390, 1400420],
     [1400420, 1500450],
     [1500450, 1600480],
     [1600480, 1700510],
     [1700510, 1800540],
     [1800540, 1900570],
     [1900570, 2000600],
     [2000600, 2100630],
     [2100630, 2200660],
     [2200660, 2300690],
     [2300690, 2400720],
     [2400720, 2500750],
     [2500750, 2600780],
     [2600780, 2700810],
     [2700810, 2800840],
     [2800840, 2900870],
     [2900870, 3000900],
     [3000900, 3100930],
     [3100930, 3200960],
     [3200960, 3300990],
     [3300990, 3401020],
     [3401020, 3501050],
     [3501050, 3601080],
     [3601080, 3701110],
     [3701110, 3801140],
     [3801140, 3901170],
     [3901170, 4001200],
     [4001200, 4101230],
     [4101230, 4201260],
     [4201260, 4301290],
     [4301290, 4401320],
     [4401320, 4501350],
     [4501350, 4601380],
     [4601380, 4701410],
     [4701410, 4801440],
     [4801440, 4901470],
     [4901470, 5001500],
     [5001500, 5101530],
     [5101530, 5201560],
     [5201560, 5301590],
     [5301590, 5401620],
     [5401620, 5501650],
     [5501650, 5601680],
     [5601680, 5701710],
     [5701710, 5801740],
     [5801740, 5901770],
     [5901770, 6001800],
     [6001800, 6101830],
     [6101830, 6201860],
     [6201860, 6301890],
     [6301890, 6401920],
     [6401920, 6501950],
     [6501950, 6601980],
     [6601980, 6702010],
     [6702010, 6802040],
     [6802040, 6902070],
     [6902070, 7002100],
     [7002100, 7102130],
     [7102130, 7202160],
     [7202160, 7302190],
     [7302190, 7402220],
     [7402220, 7502250],
     [7502250, 7602280],
     [7602280, 7702310],
     [7702310, 7802340],
     [7802340, 7902370],
     [7902370, 8002400],
     [8002400, 8102430],
     [8102430, 8202460],
     [8202460, 8302490],
     [8302490, 8402520],
     [8402520, 8502550],
     [8502550, 8602580],
     [8602580, 8702610],
     [8702610, 8802640],
     [8802640, 8902670],
     [8902670, 9002700],
     [9002700, 9102730],
     [9102730, 9202760],
     [9202760, 9302790],
     [9302790, 9402820],
     [9402820, 9502850],
     [9502850, 9602880],
     [9602880, 9702910],
     [9702910, 9802940],
     [9802940, 9902970],
     [9902970, 10003000],
     [10003000, 10103030],
     [10103030, 10203060],
     [10203060, 10303090],
     [10303090, 10403120],
     [10403120, 10503150],
     [10503150, 10603180],
     [10603180, 10703210],
     [10703210, 10803240],
     [10803240, 10903270],
     [10903270, 11003300],
     [11003300, 11103330],
     [11103330, 11203360],
     [11203360, 11303390],
     [11303390, 11403420],
     [11403420, 11503450],
     [11503450, 11603480],
     [11603480, 11703510],
     [11703510, 11803540],
     [11803540, 11903570],
     [11903570, 12003600],
     [12003600, 12103630],
     [12103630, 12203660],
     [12203660, 12303690],
     [12303690, 12403720],
     [12403720, 12503750],
     [12503750, 12603780],
     [12603780, 12703810],
     [12703810, 12803840],
     [12803840, 12903870],
     [12903870, 13003900],
     [13003900, 13103930],
     [13103930, 13203960],
     [13203960, 13303990],
     [13303990, 13404020],
     [13404020, 13504050],
     [13504050, 13604080],
     [13604080, 13704110],
     [13704110, 13804140],
     [13804140, 13904170],
     [13904170, 14004200],
     [14004200, 14104230],
     [14104230, 14204260],
     [14204260, 14304290],
     [14304290, 14404320],
     [14404320, 14504350],
     [14504350, 14604380],
     [14604380, 14704410],
     [14704410, 14804440],
     [14804440, 14904470],
     [14904470, 15004500],
     [15004500, 15104530],
     [15104530, 15204560],
     [15204560, 15304590],
     [15304590, 15404620],
     [15404620, 15504650],
     [15504650, 15604680],
     [15604680, 15704710],
     [15704710, 15804740],
     [15804740, 15904770],
     [15904770, 16004800],
     [16004800, 16104830],
     [16104830, 16204860],
     [16204860, 16304890],
     [16304890, 16404920],
     [16404920, 16504950],
     [16504950, 16604980],
     [16604980, 16705010],
     [16705010, 16805040],
     [16805040, 16905070],
     [16905070, 17005100],
     [17005100, 17105130],
     [17105130, 17205160],
     [17205160, 17305190],
     [17305190, 17405220],
     [17405220, 17505250],
     [17505250, 17605280],
     [17605280, 17705310],
     [17705310, 17805340],
     [17805340, 17905370],
     [17905370, 18005400],
     [18005400, 18105430],
     [18105430, 18205460],
     [18205460, 18305490],
     [18305490, 18405520],
     [18405520, 18505550],
     [18505550, 18605580],
     [18605580, 18705610],
     [18705610, 18805640],
     [18805640, 18905670],
     [18905670, 19005700],
     [19005700, 19105730],
     [19105730, 19205760],
     [19205760, 19305790],
     [19305790, 19405820],
     [19405820, 19505850],
     [19505850, 19605880],
     [19605880, 19705910],
     [19705910, 19805940],
     [19805940, 19905970],
     [19905970, 20006000],
     [20006000, 20106030],
     [20106030, 20206060],
     [20206060, 20306090],
     [20306090, 20406120],
     [20406120, 20506150],
     [20506150, 20606180],
     [20606180, 20706210],
     [20706210, 20806240],
     [20806240, 20906270],
     [20906270, 21006300],
     [21006300, 21106330],
     [21106330, 21206360],
     [21206360, 21306390],
     [21306390, 21406420],
     [21406420, 21506450],
     [21506450, 21606480],
     [21606480, 21706510],
     [21706510, 21806540],
     [21806540, 21906570],
     [21906570, 22006600],
     [22006600, 22106630],
     [22106630, 22206660],
     [22206660, 22306690],
     [22306690, 22406720],
     [22406720, 22506750],
     [22506750, 22606780],
     [22606780, 22706810],
     [22706810, 22806840],
     [22806840, 22906870],
     [22906870, 23006900],
     [23006900, 23106930],
     [23106930, 23206960],
     [23206960, 23306990],
     [23306990, 23407020],
     [23407020, 23507050],
     [23507050, 23607080],
     [23607080, 23707110],
     [23707110, 23807140],
     [23807140, 23907170],
     [23907170, 24007200],
     [24007200, 24107230],
     [24107230, 24207260],
     [24207260, 24307290],
     [24307290, 24407320],
     [24407320, 24507350],
     [24507350, 24607380],
     [24607380, 24707410],
     [24707410, 24807440],
     [24807440, 24907470],
     [24907470, 25007500],
     [25007500, 25107530],
     [25107530, 25207560],
     [25207560, 25307590],
     [25307590, 25407620],
     [25407620, 25507650],
     [25507650, 25607680],
     [25607680, 25707710],
     [25707710, 25807740],
     [25807740, 25907770],
     [25907770, 26007800],
     [26007800, 26107830],
     [26107830, 26207860],
     [26207860, 26307890],
     [26307890, 26407920],
     [26407920, 26507950],
     [26507950, 26607980],
     [26607980, 26708010],
     [26708010, 26808040],
     [26808040, 26908070],
     [26908070, 27008100],
     [27008100, 27108130],
     [27108130, 27208160],
     [27208160, 27308190],
     [27308190, 27408220],
     [27408220, 27508250],
     [27508250, 27608280],
     [27608280, 27708310],
     [27708310, 27808340],
     [27808340, 27908370],
     [27908370, 28008400],
     [28008400, 28108430],
     [28108430, 28208460],
     [28208460, 28308490],
     [28308490, 28408520],
     [28408520, 28508550],
     [28508550, 28608580],
     [28608580, 28708610],
     [28708610, 28808640],
     [28808640, 28908670],
     [28908670, 29008700],
     [29008700, 29108730],
     [29108730, 29208760],
     [29208760, 29308627]],
    'num_entries': 29308627,
    'uuid': '7a4da368-cfd1-11e8-9717-97650d81beef'}},
  'metadata': {'is_mc': False},
  'form': None},
 'ZZ to 4mu': {'files': {'/Users/iason/work/pyhep_dev/uscms-idap-training/coffea/ZZTo4mu.root': {'object_path': 'Events',
    'steps': [[0, 99938],
     [99938, 199876],
     [199876, 299814],
     [299814, 399752],
     [399752, 499690],
     [499690, 599628],
     [599628, 699566],
     [699566, 799504],
     [799504, 899442],
     [899442, 999380],
     [999380, 1099318],
     [1099318, 1199256],
     [1199256, 1299194],
     [1299194, 1399132],
     [1399132, 1499064]],
    'num_entries': 1499064,
    'uuid': '9fb6f85c-cfd1-11e8-9717-97650d81beef'}},
  'metadata': {'is_mc': True},
  'form': None}}













Saving a preprocessed fileset#


We can use the gzip, pickle, and json modules/libraries to both save and reload datasets directly. We’ll do this short example below






import gzip
import json

output_file = "example_fileset"
with gzip.open(f"{output_file}_available.json.gz", "wt") as file:
    json.dump(preprocessed_available, file, indent=2)
    print(f"Saved available fileset chunks to {output_file}_available.json.gz")
with gzip.open(f"{output_file}_all.json.gz", "wt") as file:
    json.dump(preprocessed_total, file, indent=2)
    print(f"Saved complete fileset chunks to {output_file}_all.json.gz")









Saved available fileset chunks to example_fileset_available.json.gz
Saved complete fileset chunks to example_fileset_all.json.gz









We could then reload these filesets and quickly pick up where we left off. Often we’ll want to preprocess again “soon” before analyzing data because this will let us catch which files are accessible now and which are not. The saved filesets may be useful for tracking, and we may have enough stability to reuse it for some period of time.






with gzip.open(f"{output_file}_available.json.gz", "rt") as file:
    reloaded_available = json.load(file)
with gzip.open(f"{output_file}_all.json.gz", "rt") as file:
    reloaded_all = json.load(file)













Slicing chunks and files#


Given this preprocessed fileset, we can test our processor on just a few chunks of a handful of files. To do this, we use the max_files and max_chunks functions from the dataset tools






test_preprocessed_files = max_files(preprocessed_available, 1)
test_preprocessed = max_chunks(test_preprocessed_files, 3)













test_preprocessed









{'DoubleMuon': {'files': {'/Users/iason/work/pyhep_dev/uscms-idap-training/coffea/Run2012B_DoubleMuParked.root': {'object_path': 'Events',
    'steps': [[0, 100030], [100030, 200060], [200060, 300090]],
    'num_entries': 29308627,
    'uuid': '7a4da368-cfd1-11e8-9717-97650d81beef'}},
  'metadata': {'is_mc': False},
  'form': None},
 'ZZ to 4mu': {'files': {'/Users/iason/work/pyhep_dev/uscms-idap-training/coffea/ZZTo4mu.root': {'object_path': 'Events',
    'steps': [[0, 99938], [99938, 199876], [199876, 299814]],
    'num_entries': 1499064,
    'uuid': '9fb6f85c-cfd1-11e8-9717-97650d81beef'}},
  'metadata': {'is_mc': True},
  'form': None}}













small_tg, small_rep = apply_to_fileset(
    data_manipulation=MyProcessor("dask"),
    fileset=test_preprocessed,
    schemaclass=BaseSchema,
    uproot_options={"allow_read_errors_with_report": (OSError, ValueError)},
)

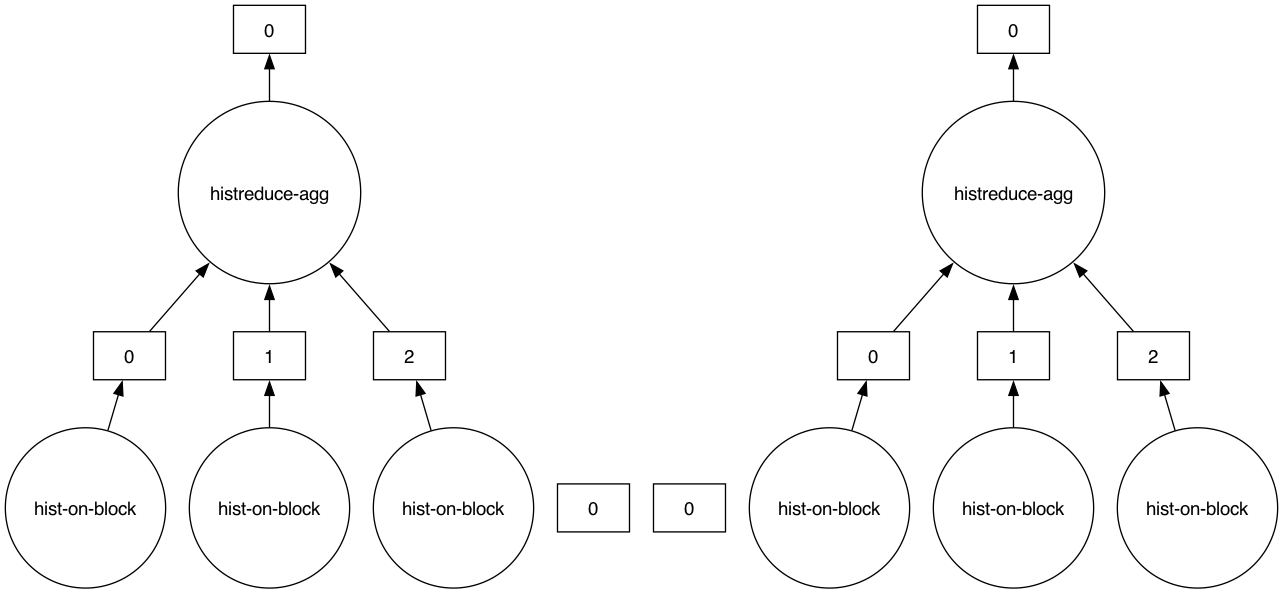

dask.visualize(small_tg, optimize_graph=True)








../_images/07ee39d2b82e3f191bee435eeedbc85a2be9e8773fa6c4b7f280a982cffb9e29.png









%%time
small_computed, small_rep_computed = dask.compute(small_tg, small_rep)









CPU times: user 121 ms, sys: 14.5 ms, total: 135 ms
Wall time: 241 ms













small_rep_computed["DoubleMuon"]









[{call_time: None, duration: 0.0405, performance_counters: {...}, ...},
 {call_time: None, duration: 0.0882, performance_counters: {...}, ...},
 {call_time: None, duration: 0.06, performance_counters: {...}, args: ..., ...}]
--------------------------------------------------------------------------------
backend: cpu
nbytes: 730 B
type: 3 * {
    call_time: ?unknown,
    duration: float64,
    performance_counters: {
        num_requested_bytes: int64,
        num_requests: int64,
        num_requested_chunks: int64
    },
    args: var * string,
    kwargs: var * unknown,
    exception: ?unknown,
    ...
}








small_computed









{'DoubleMuon': {'entries': 300090,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 146806.0 (147001.0 with flow)},
 'ZZ to 4mu': {'entries': 299814,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 57211.0 (57331.0 with flow)}}













fig, ax = plt.subplots()
small_computed["DoubleMuon"]["mass"].plot1d(ax=ax)
ax.set_xscale("log")
ax.legend(title="Dimuon charge")
plt.show()








../_images/a72ca24c6a15c2eda5805897e050fa428d37772e563add904fc8f3446a7a7f46.png









full_tg, rep = apply_to_fileset(
    data_manipulation=MyProcessor("dask"),
    fileset=preprocessed_available,
    schemaclass=BaseSchema,
    uproot_options={"allow_read_errors_with_report": (OSError, ValueError)},
)









Dask automatically uses a client if there is one alive to compute. If you haven’t destroyed the client/cluster above, this computation will use it. Look at the dask docs about how to configure computation.






%%time
out, rep = dask.compute(full_tg, rep)









CPU times: user 2 s, sys: 152 ms, total: 2.15 s
Wall time: 3.08 s













out









{'DoubleMuon': {'entries': 29308627,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 14378856.0 (14397111.0 with flow)},
 'ZZ to 4mu': {'entries': 1499064,
  'mass': Hist(
    StrCategory(['opposite', 'same'], name='sign'),
    Regular(1000, 0.2, 200, transform=log, name='mass', label='$m_{\\mu\\mu}$ [GeV]'),
    storage=Int64()) # Sum: 288707.0 (289326.0 with flow)}}













fig, ax = plt.subplots()
out["DoubleMuon"]["mass"].plot1d(ax=ax)
ax.set_xscale("log")
ax.legend(title="Dimuon charge")
plt.show()








../_images/9ff5adf1ccb1064a69dfcf69f5984c4c60de27f339d35aaed0e5df6c206335b1.png
